Packaging: Wooden pallet or steel pallet, or according to your design or we make design for your brand if required
Supply Ability: 1000 Piece/Pieces per Month cutter sickle assemble
Payment Type: L/C,D/P,D/A,T/T,MoneyGram
High quality Combine harvester cutter bar
| Constitute of Combine harvester cutter bar | |

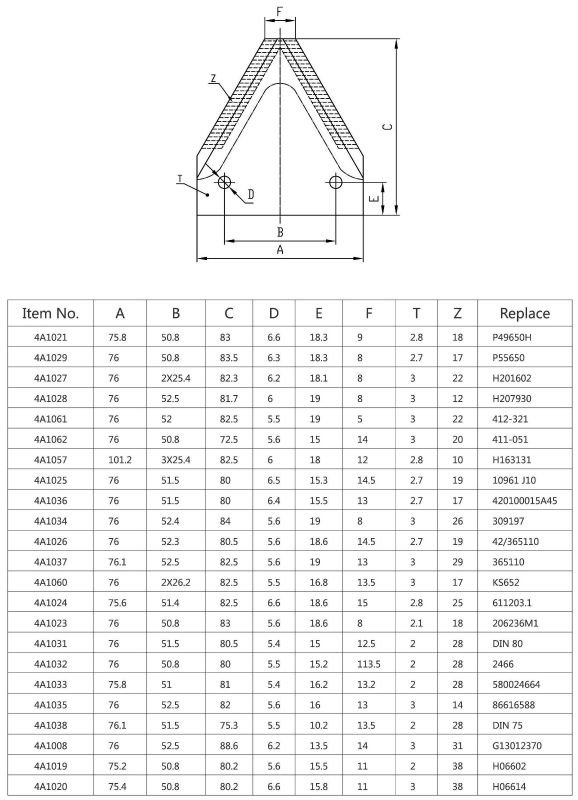

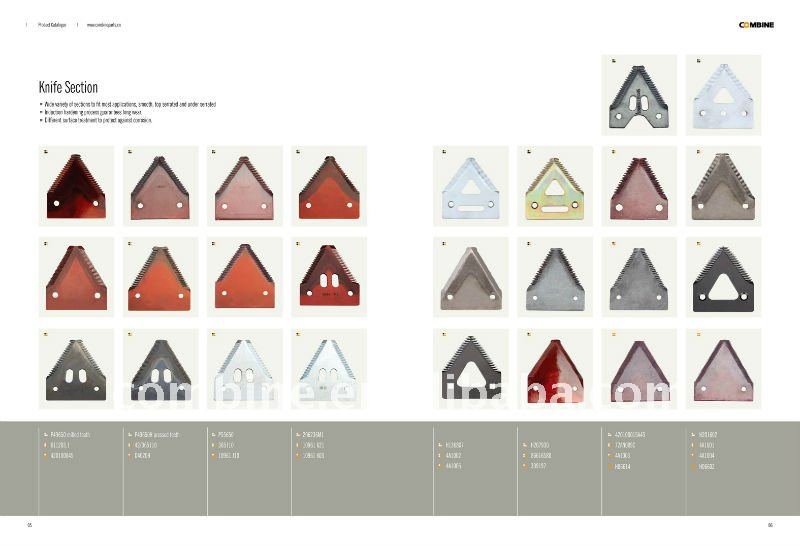

| 1. Knife Section |
Material: 65Mn or T9
Hardness: HRC50-55, Induction hardening process guarantees long wear
Thickness: 2.00-2.8mm
Teeth: Pressing or Milling
Upper serrated and under serrated knife sections with any special teeth number
Surface: Only with anti-rust oil; varnish stoving; galvanized; Chrome finish; blueing, etc,
Different surface treatment to protect against corrosion
Colors: natural varnished, red or green varnish, chromated sections or as requested
Use: Schumacher, Yanmar, Ford and so on
Other advantage:
End section / half section, which reduces troublesome cutter bar clogging in thick
and badly tangled crops

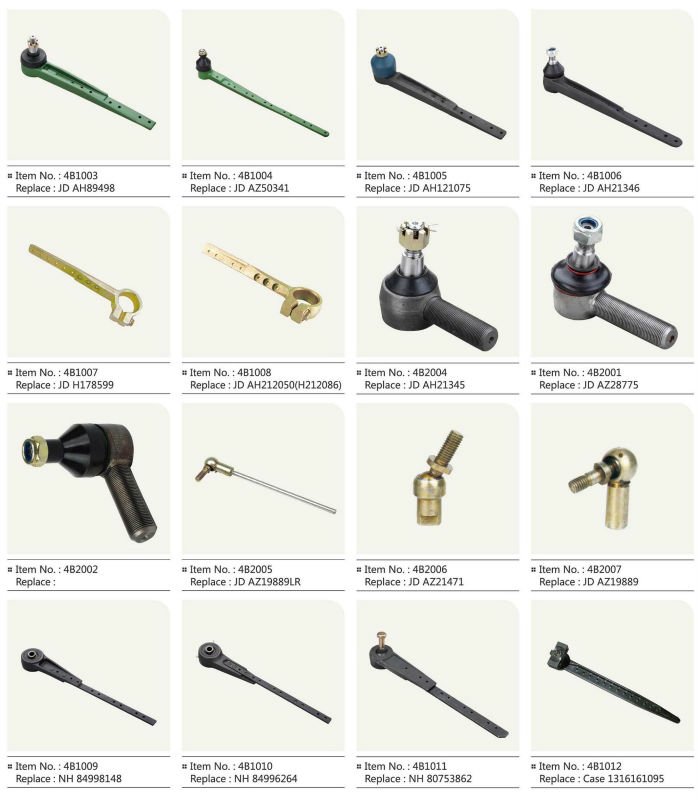

2. Knife Head:
Material: iron, steel, rubber
Processing: Forged, machined and casting
Use: for Combine Harvesters, swather,lawn mower, New Holland,Case and MF.
Application:
According to different working condition, forged, machined and casting quality is available.
Special mould development,according to customers' requirements,based on the sample or drawing
Popular models AH121075, AH89498, AZ50341, 059509P1 and so on.
3. Knife back(Cutter Bar):
Material: Cold drawn steel
Surface Treatment: Zinc Plated, Pray Paint, and Powder painting
Length: 1930mm, 6000mm, optional
Width: 20mm, optional
Thickness: 6mm, 7mm,optional
Colour: Black, Natural color
Feature: The bar with exact measurement holes or without holes will be available

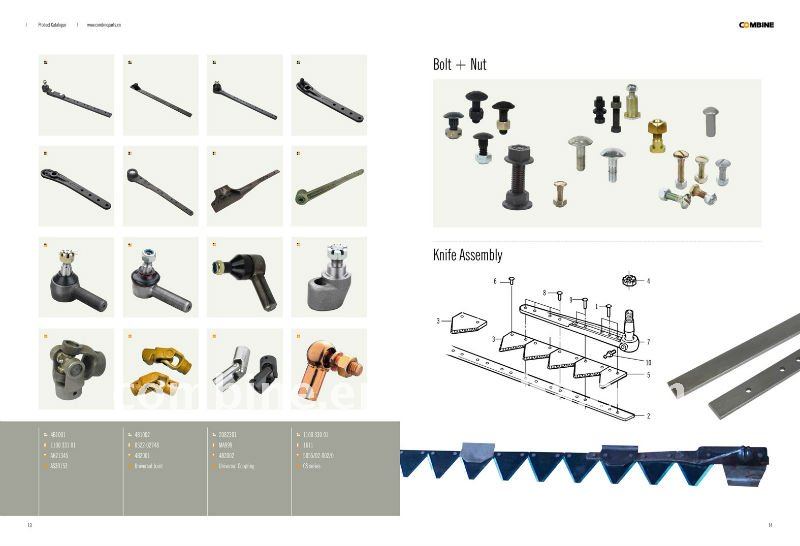

4. Bolt and Nut: can be supply
