Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH

$0.3

5000-9999
Piece/Pieces
$0.2

≥10000
Piece/Pieces

option:

4A1031 (DIN80).

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Condition:

Drive Type:

Video Outgoing-inspection:

Machinery Test Report:

Showroom Location:

Type:

Key Selling Points:

Application:

Dimension(L*W*H):

Applicable Industries:

Supply Ability & Additional Information

Packaging: Neutral Cartons and Pallets for free fumigation if there is no special requirments. But is is available to provide colourful package according to your design or we make design for your brand if requir

Supply Ability: 500000 Piece/Pieces per Month

Payment Type: L/C,T/T,MoneyGram

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: Neutral Cartons and Pallets for free fumigation if there is no special requirments. But is is available to provide colourful package according to your design or we make design for your brand if requir

Picture Example:

Buying Guides

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图1)

Product Overview

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图2)

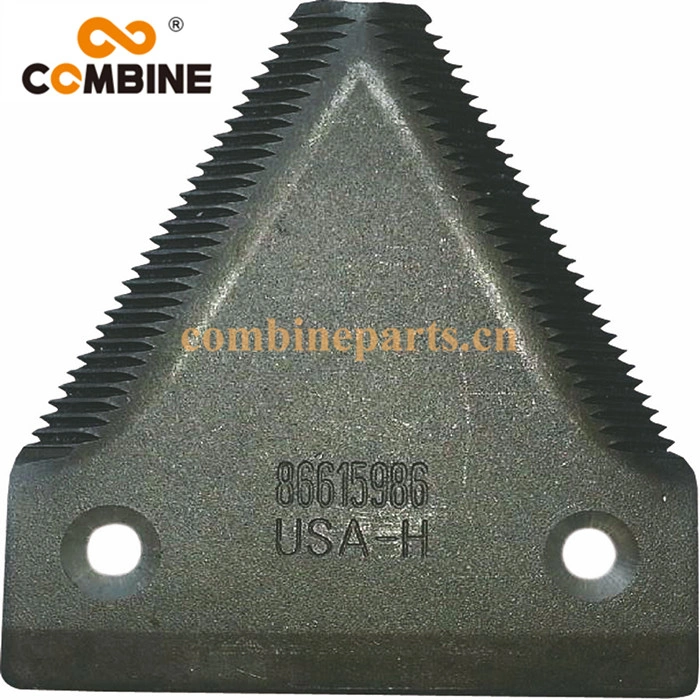

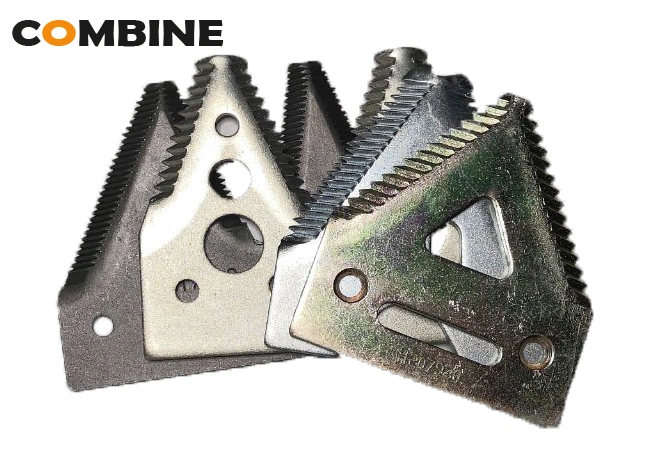

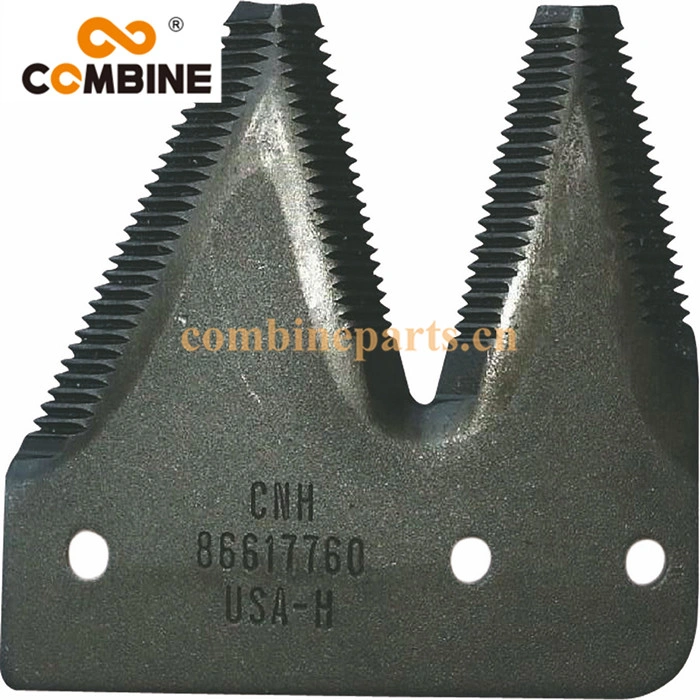

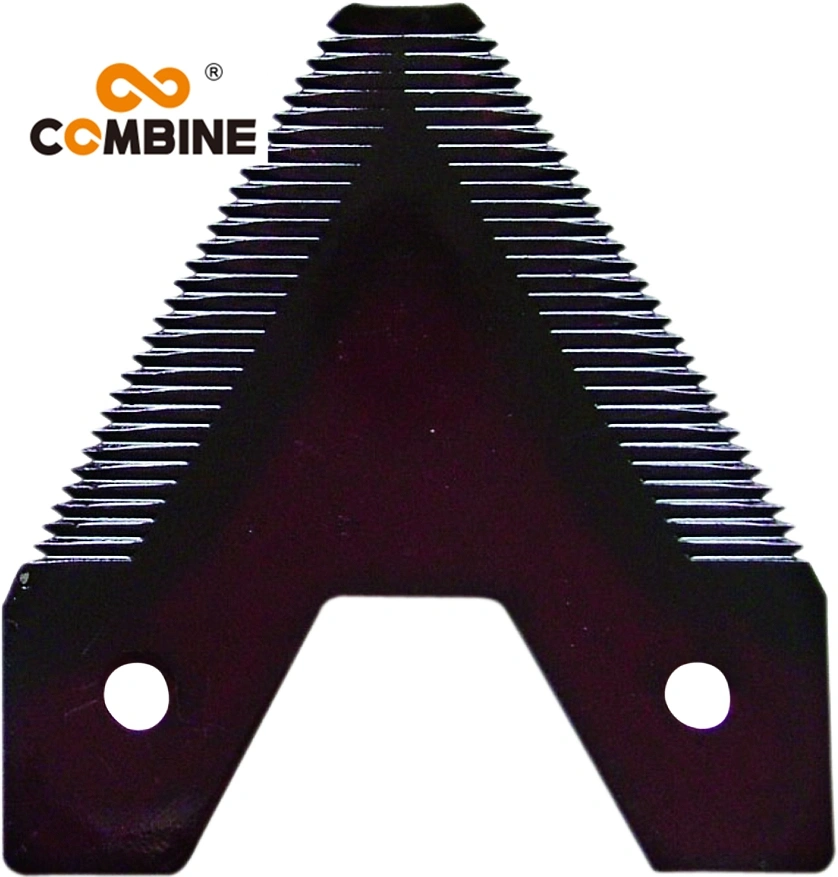

Knife Section/ Double Knife section/Colter

COMBINE knives are mounted like first equipment and for high performance spare parts in aftermarket.They are adaptable to all the
mayor brands on the market.

Advantages of the COMBINE quality

Knife sections:

- Long lasting sharp cutting edge

- Extremely break resistant

- Various serrations
available (top, under, fine,coarse)

- Optimal corrosion protection

Details Images

Knife section

Wide variety of sections to fit most applications, smooth, top serrated and under serrated.

Induction hardening process guarantees long wear.

Different surface treatment to protect against corrosion

Teeth

- Coarse teeth:

used for mower, bean harvester

- Fine teeth:

used for wheat harvester, rice harvester

Material

16Mn, C45, 65Mn, 60Si₂Mn, 70C

the harder of crop, the harder of knife section

material used base on what kind of crop you to harvest

Surface

- Galvanization:

color zinc, white zinc

- Varnishing:

red, yellow, green, black and so on

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图4)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图5)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图6)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图7)

PRODUCT SPECIFICATIONS

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图8)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图9)

No	COMBINE No.	Ref. No.	Description	Application
¹	4A1006	191256A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.090	CA SE 820, 1010, 1020; N H 71C, 72C, 73C, 74C
²	4A1026	80365110	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: red varnishing WT(kg/pc): 0.095	N H 1530,1540,1545,1550,8030, 8040,8050,8055,8060,8070,8080, TC52,TC54,TF42,TF44,TF46,TX30, TX32,TX34,TX36
³	4A1035	86616588122074A1	Teeth: top serrated Teeth Nos: 14 Thickness: 2.8 Surface: sand blasting WT(kg/pc): 0.090	N H 12HS,14HSSPL,18HS,2300H,16HS CA SE-IH 820,1010,1020,2010,2020
⁴	4A1054	87037972	Teeth: top serrated Teeth Nos: 16 Thickness: 2.8 Surface: black varnishing
⁵	4A1073	826722C1 1036362M1	Teeth: top serrated Teeth Nos: 26 Thickness: 2.8 Surface: red varnishing	N H TR89,TR98,TR99,880,460,461, 467,469,474,477,478,479,489,490,44,45,450,455 ,46,47,725,M F 925
⁶	4A1075	86617759	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing
⁷	4A1076	86615988	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing	CA SE 1010,1020,820, Hesston 1100
⁸	4A1077	86615986	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
⁹	4A1078	86615987	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing
¹⁰	4A1079	86617760	Teeth: top serrated Teeth Nos: 27 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 72C,18HB,21HB,25HB,30HB, 36HB,12HS,14HS,16HS, 2300H,1465,1495,1496,1499,469,472,474,488,489,492,495,499
¹¹	4A1084	700705300	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 525,625,8820,8830, 8840,SC412,SC414,SC416,8320,8330,8340,8350,8360,8370,8380,NH 72C,74C,12HS,14HS,16HS,18HS,2200H,2300H,1499,499
¹²	4A1085	457607R3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.092	CASE 1290,CUB 22,L22,201 ,210,225,230,275,375,NH 1465,1495,469,472,474,477,478,479,488,489,492,505,507
¹³	4A1087	86616945	Teeth: top serrated Teeth Nos: 28 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	N H 1469,472,477,478,479,488,490
¹⁴	4A1088	67630	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: clear varnishing WT(kg/pc): 0.062	CA SE 1100,1200,1300, N H 1880,1116H,1116NH,919S, 116,1100,1112,1114,1116,1118,114,903,907,909,910,912
¹⁵	4A1089	112074A1	Teeth: top serrated Teeth Nos: 17 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.086	CASE 1010,1020,820
16	4A1090	826720C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.088	CA SE 820,1010,1020,2010,2020,NH 71C,72C,73C,74C
17	4A1091	826724C2	Teeth: top serrated Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.092	CASE 1010,1020,820
18	4A1092	826722C2	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.090	CASE 222,816,990,100,1000,105, 110,1100,1110,115,120,1200,1300,200,22,230,3110
19	4A1093	823711C3	Teeth: top serrated Teeth Nos: 31 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.093	CNH 12HS,1499,2200H,14HS,18HS, 1465,2300H,16HS,74C,72C
20	4A1094	823713C3	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.086
21	4A1095	596321R4	Teeth: top serrated Teeth Nos: 25 Thickness: 2.8 Surface: white zinc plating WT(kg/pc): 0.087	CA SE 2010,2020,SMX91,HDX121, HDX122,HDX141,HDX142,HDX161,HDX181,HDX182, N H 72C,74C,12HS,14HS,16HS, 18HS,2200H,2300H,1465
²²	4A1096	604810	Teeth: top serrated Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.066	CA SE 907,1118,905,910,1116,1112, 1114,909,912,903,900,1116, N H 1100,1116H,849,850,851,858, 855,846,845
23	4A1097	604800	Teeth: top serrated Teeth Nos: 28 Thickness: 2 Surface: white zinc plating WT(kg/pc): 0.063	N H 116,1100,1112,1114,1116,1118
24	4A1104	87728905	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
25	4A1116	87470186	Teeth: top serrated Teeth Nos: 19 Thickness: 2.8 Surface: clear varnishing WT(kg/pc): 0.080
26	4A1117	87470187	Mounting holes:Ø 6.2 C-C spaced: 51.5 Thickness:76 WT(kg/pc):0.09	Ca se-IH 3020-20,3020-25,3020-30,3020-35,2142,2152,2162,3152,3162

Product packaging

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图10)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图11)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图12)

Packing way

- 25pcs /box

- 200pcs (8 boxes) /carton

- 10000pcs (50 cartons)/ wooden case

Why Choose Us

1）Guarantee Quality and Avoid your loss

COMBINE guarantees quality 100% - for any parts failing to meet the agreed standards, we offer 100% refund or free replacement. This can apparently avoid your loss and save your time to solve disputes.

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图13)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图14)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图15)

2）Deliver Your Order In time

Our own production and regular stock in the warehouse can well manage your order and deliver them in time for the selling season.

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图16)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图17)

3）Reduce Your Cost

With experience since 2001, our genuine supply of over 6000 distinct wearing parts, can greatly reduce both selection risk and costs associated with time-sensitive, decentralized global purchasing.

OEM quality but China price can optimize the cost performance to the best.

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图18)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图19)

Harvester And Reaper Blades knife section For Agricultural Machinery Parts replacement for JD, CLAAS, CNH(图20)
