high quality professional agricultural machinery parts of Boron steel,steel disc harrow

  • $18
    200-1999
    Piece/Pieces
  • $15
    ≥2000
    Piece/Pieces
option:
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Condition:

Drive Type:

Video Outgoing-inspection:

Machinery Test Report:

Showroom Location:

Type:

Key Selling Points:

Application:

Dimension(L*W*H):

Applicable Industries:

Supply Ability & Additional Information

Packaging: Packing Size :1560*1280*760 *G.W.(KG):250 *N.W.(kG):210 *Packing design:steel frame..

Supply Ability: 50 Set/Sets per Month Agricultural Machinery

Payment Type: L/C,T/T,MoneyGram

Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
Packing Size :1560*1280*760 *G.W.(KG):250 *N.W.(kG):210 *Packing design:steel frame..
Picture Example:
Buying Guides
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图1)
Product Overview
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图2)

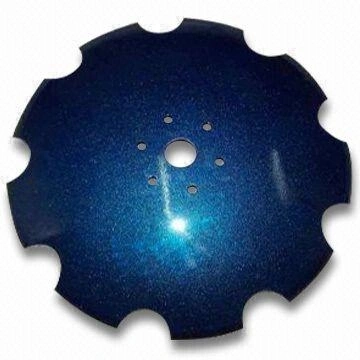

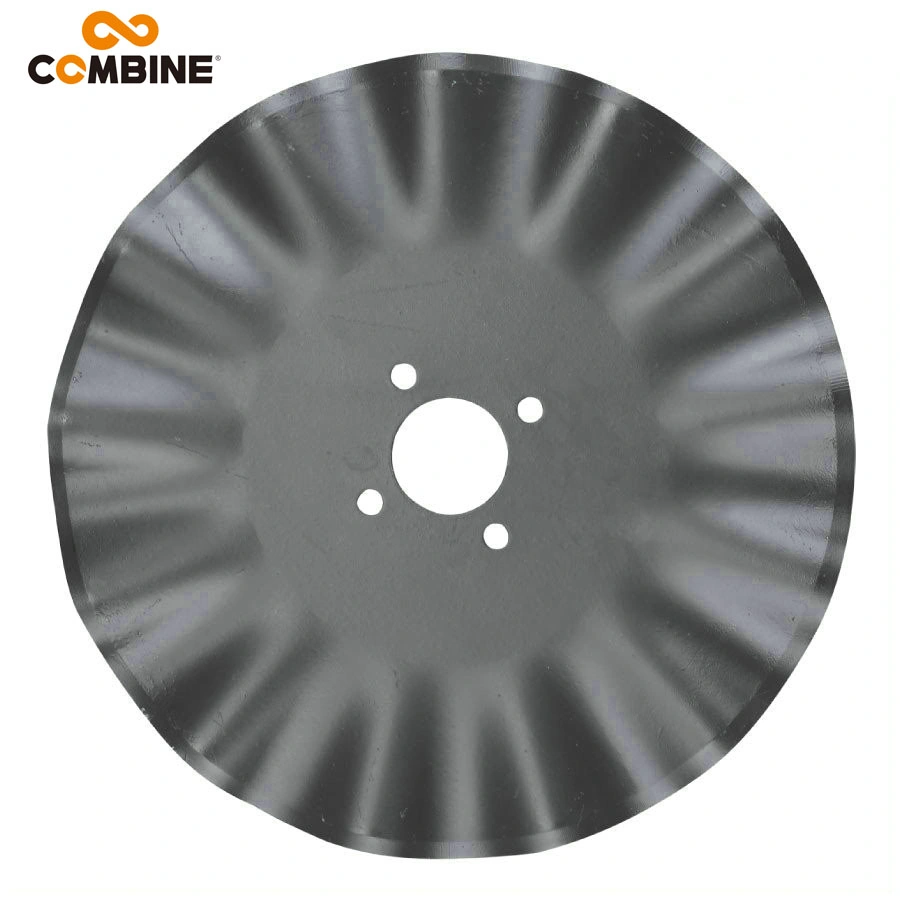

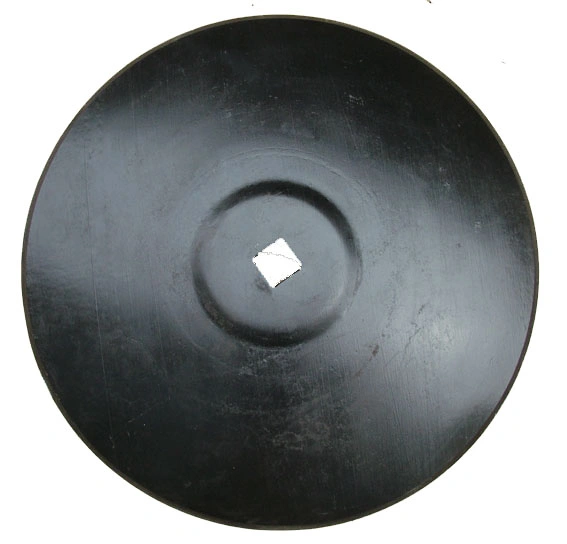

COMBINE Harrow Disc
A harrow disc is a harrow whose cutting edges are a row of concave metal discs, which may be scalloped, set at an oblique angle. It is an agricultural implement that is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders.

*** Find Harrow disc at Ningbo Combine easily for your Disc Harrow or implement.
*** We can provide different size of Harrow disc from 10'' to 44'' Plain or Notched.
*** All our harrow discs are heat treated to provide maximum resistance to breaking.
*** Can provide you two material, 65Mn and Boron steel used in different field.
*** Raised Flat Center and Cone style harrow discs are also available.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图3)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图4)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图5)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图6)
Details Images
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图7)
Outer Dimater
Thickness
 Plain -weight
Notch Nos
Notch weight
300mm/12''
3
1.6
6
1.1
330mm/13''
3
1.8
6
1.2
360mm/14''
3
2.3
7
1.9
410mm/16''
3
3.2
8
2.7
450mm/18''
3.25
4.3
9
3.8
450mm/18''
4
5.3
9
4.7
510mm/20''
3.5
5.8
10
5.6
510mm/20''
4
6.5
10
5.8
510mm/20''
4.5
7
10
6.5
510mm/20''
5
7.6
10
6.7
560mm/22''
4
8.1
10
7.5
560mm/22''
4.5
9
10
8
560mm/22''
5
9.5
10
9
560mm/22''
6
12
10
11
610mm/24''
5
11.3
10
10.5
610mm/24''
6
14.2
10
13
660mm/26''
5
14.1
10
13
660mm/26''
6
17
10
15.8
660mm/26''
7
20
10
18.5
660mm/26''
8
23
10
21
710mm/28''
6
20
10
18.5
710mm/28''
7
23
10
21.5
710mm/28''
8
26
10
24
710mm/28''
10
32
10
30.5
760mm/30''
8
29
10
28
760mm/30''
10
35
10
33.5
810mm/32''
8
35
10
33
810mm/32''
10
43
10
40
910mm/36''
12
68
14
60
960mm/38''
12.5
77
15
70
1016mm/40''
12.5
82
15
77
1116mm/44''
12.5
89
15
84

Type of Hole

Different type of holes for your chosen.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图8)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图9)
Type of Edges
There kinds of edges are available according to the requirements.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图10)
Concavity
1. D and T are standard as listed in the label.
2. H is according to our mould if no specified requirements.
3. Center hole has 8 different shapes.
4. If without hub, "d2"=0.
Product packaging
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图11)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图12)
How to order it
if you don't have drawing, you can provide us below information and we also can prepare the quotation to you. Or contact us!
S/N
Name
Size
Plain or Notched
Thickness
(mm)
Hole Style
Shape
H
Concavity (mm)
Edge type
Soil condition
An example for your reference









1
Harrow disc
500
Plain
4mm
G
A
53mm
B
heavy clay and with stumps
2









3









high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图13)
Why Choose Us

1）Guarantee Quality and Avoid your loss

COMBINE guarantees quality 100% - for any parts failing to meet the agreed standards, we offer 100% refund or free replacement. This can apparently avoid your loss and save your time to solve disputes.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图14)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图15)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图16)

2）Deliver Your Order In time

Our own production and regular stock in the warehouse can well manage your order and deliver them in time for the selling season.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图17)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图18)

3）Reduce Your Cost

With experience since 2001, our genuine supply of over 6000 distinct wearing parts, can greatly reduce both selection risk and costs associated with time-sensitive, decentralized global purchasing.
OEM quality but China price can optimize the cost performance to the best.
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图19)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图20)
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图21)
Contact Us
Whenever you need any information of our parts, please feel freely to contact us by Trade manager, Email, Call.
We always be here for you!
high quality professional agricultural machinery parts of Boron steel,steel disc harrow(图22)
